CAP

Cap(Grooved): The fittings usually used in fire protection, feed water, oil or gas and etc. Surface Treatment: 1,Painting 2,Epoxy powder coating 3,Galvanized paint 4,Dacromet 5,as your requirements Specification and Details NominalSizemm/in

Product introduction

The product description

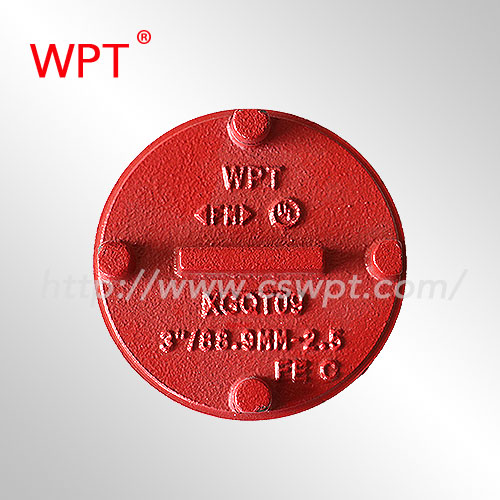

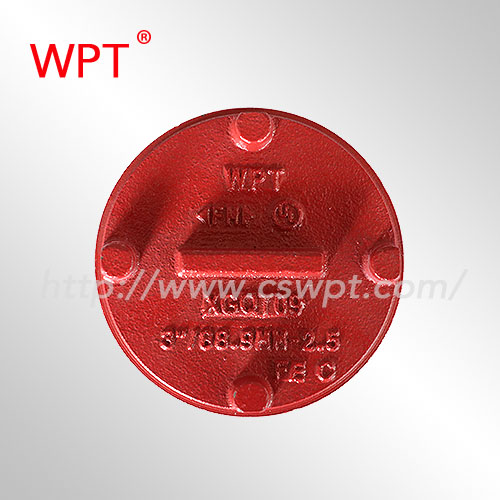

Cap(Grooved):

The fittings usually used in fire protection, feed water, oil or gas and etc.

Surface Treatment:

1,Painting   2,Epoxy powder coating  3,Galvanized paint  4,Dacromet   5,as your requirements

Specification and Details

Nominal Size mm/in Pipe O.D mm/in Working Presure PSI/Mpa   L           mm/in
25 33.7 300 26
1 1.327 2.07 1.023
32 42.4 300 26
1.25 1.669 2.07 1.023
40 48.3 300 26
1.5 1.9 2.07 1.023
50 60.3 300 26
2 2.375 2.07 1.024
65 76.1 300 26
2.5 2.996 2.07 1.024
80 88.9 300 26
3 3.5 2.07 1.024
100 114.3 300 26
4 4.5 2.07 1.024
125 139.7 300 26
5 5.5 2.07 1.024
125 141.3 300 26
5 5.563 2.07 1.024
150 165.1 300 26
6 6.5 2.07 1.024
200 219.1 300 34
8 8.626 2.07 1.339
250 273 300 30
10 10.75 2.07 1.181
300 323.9 300 30
12 12.752 2.07 1.181


1. Urban water pipe network system. Large diameter PE pipe, non-toxic, non-scale, more suitable for urban water supply main pipe and buried pipe, safety, sanitation, construction convenience. 2. Replaceable cement pipe, cast iron pipe and steel pipe. Used for the old network reconstruction project, not large area excavation, low cost, can be widely used in the old city pipe network reconstruction. 3. Industrial raw material transportation pipeline. Chemical, chemical fiber, food, forestry, pharmaceutical, light industry, paper, metallurgy and other industrial raw materials conveying pipe. 4. Landscaping water supply pipe network. Landscaping requires a lot of water pipeline, PE pipe toughness and low cost, making it the best choice. 5. Pipe material for sewage discharge. PE pipe has unique corrosion resistance and can be used in industrial wastewater, sewage discharge, cost and maintenance cost. 6. Ore and mud conveying. PE pipe is highly resistant to stress and abrasion, and can be widely used in transporting ore, coal ash and dredging mud. 7. Agricultural irrigation pipelines. The PE tube has smooth inner wall, large flow, and good impact resistance. It is ideal for agricultural irrigation.
